Explosion-proof Microwave Sensor

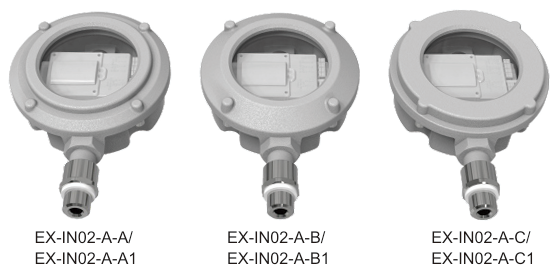

IN02-A Explosion-Proof Microwave Sensor

The IN02-A is a professional-grade explosion-proof microwave sensor designed for hazardous industrial environments. This advanced motion detection system operates at 5.8 GHz frequency and provides reliable ON/OFF and 1-10V dimming control for lighting applications.

Key Features:

• Explosion-Proof Certification: Class I, Division 2, Groups A, B, C, D rated for hazardous locations
• Wide Voltage Range: AC120-277V, 50/60Hz input with robust surge protection (L-N: 1kV)
• High Load Capacity: Handles up to 4.5A at 120V or 2A at 277V (550W max power)
• Advanced Detection: 5.8 GHz microwave technology with 2-3m detection radius at 10m mounting height
• Multiple Control Modes: ON/OFF switching, two-step dimming, and three-step dimming functions
• Flexible Settings: Adjustable hold time (5s to 30min), stand-by period (0s to +∞), and detection area (10%-100%)
• Daylight Integration: Built-in daylight sensor with adjustable thresholds (5-150 Lux or disable)
• Remote Control Ready: Optional remote control for easy parameter adjustment
• Weatherproof Design: IP66 rating with aluminium housing construction
• Long Lifespan: 50,000-hour rated lifetime for reliable operation

Applications: Perfect for industrial facilities, warehouses, manufacturing plants, and other hazardous environments where explosion-proof lighting control is required. The sensor provides intelligent energy savings through motion detection and daylight harvesting.

Technical Highlights:

• Operating temperature: -25°C to +60°C
• 150° detection angle with customizable sensitivity zones
• Compatible with 0-10V dimming LED drivers
• Professional installation required
• Multiple housing options available (aluminum alloy or PC covers)
