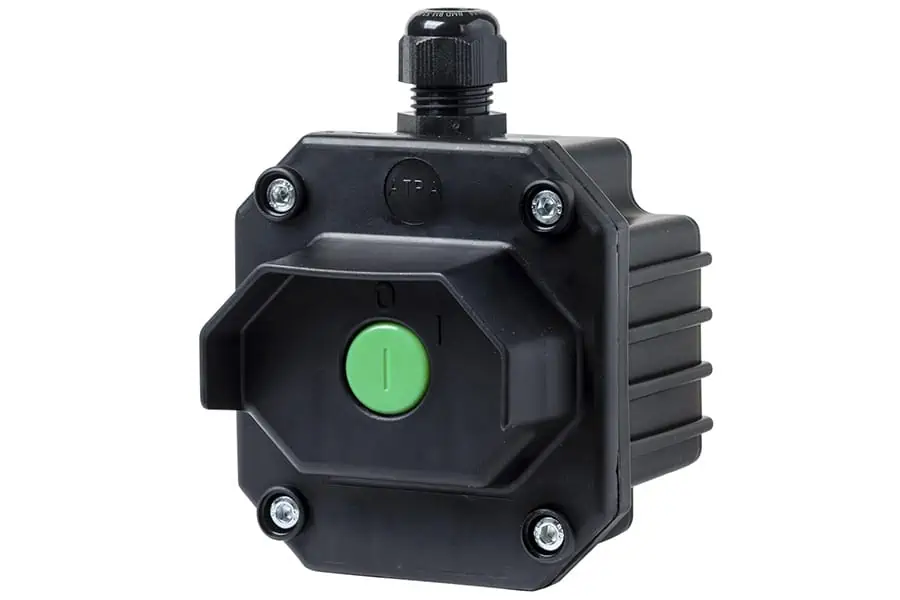

ATEX Push button station

Name: ATEX Push button station - Atex-Supplies
Price: 49.00 GBP
Availability: InStock

£49.00 + VAT

Atex push button station

Explosion-proof button PP-P – 1
cable gland
II 2 D Ex t IIIC T80°С IP65 Db
II 2 G Ex e II T6Gb

Technical drawings

Starter P - Start

Category: Exclusive Offers

ATEX Push button station

Available in Green & Red colors

Purpose	Zone 1, 2, 21, 22
Degree of protection	IP 65
Connection terminals	2.5mm² (per contact element)
Operating temperature	-20°C / +60°C
Rated current	6A
Nominal voltage – for contact elements	400V AC
Rated voltage – for indicator lights	20 ÷ 30V AC/DC 170 ÷ 250 V AC 50 Hz
Type	PP-P
Marking	II 2 G Ex eb db mb IIC T6 Gb II 2 D Ex tb mb IIIC T80°C IP65 Db
Purpose	Outdoor installation
Number of inputs	2
