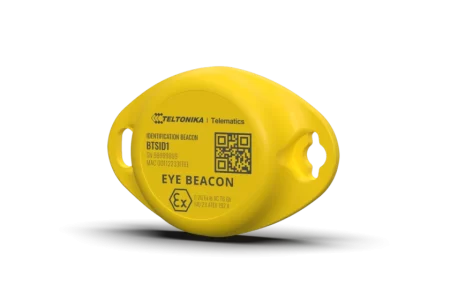

Wireless tag – Eye beacon Atex

eye beacon

Contact us for pricing details.

Category:
Atex eye beacon use case
Wireless tag perfect for traceability use cases, delivery tracking, monitoring of various movable objects in logistics (trailers, containers), agriculture (tractor attachments), and constructions (tools and inventory). Also, it suitable for indoor tracking solutions for items tracking in warehouses, hospitals, transport hubs and other types of industrial areas. EYE beacon supports iBeacon and Eddystone protocols. The device is fully compatible with the Teltonika firmware platform which provides extended functionality. Configure, scan, and update anytime anywhere with a dedicated Teltonika mobile app.

Features

Beacon ID: Yes

Sensors: Magnet detection

Scenarios: Tool tracking, RSSI indoor tracking, Equipment tracking, Mobile objects tracking, Medical equipment tracking, Smart agriculture, Smart manufacturing

Sleep mode: Hibernate

Configuration and firmware update: EYE APP

Electronics

Microcontroller: ST Microelectronics BlueNRG-2

Connectivity

Bluetooth®: Bluetooth® 4.2

Range: 80 m

Transmission power level: Up to 8 dBm

Sensitivity: -88 dBm

Battery and power

Type: Lithium / Manganese Dioxide

Capacity: 600 mAh

Battery life:

  • 4 years (Tx=2dBm; interval 3s)
  • 8 years, (Tx=2 dBm; interval: 5s), DEFAULT
  • 10 years (Tx=2dBm; interval 10s)
Physical specification

Dimensions: 56.6 x 38.0 x 13.0 mm (L x W x H)

Weight: 18 g

Casing

Ingress protection: IP67

Mounting: Two mounting points on each side

Marking: Available branding customisation upon request

Environmental requirements

Operational temperature: -20 °C / +60 °C (-4 °F / +140 °F)

Humidity (non-condensing): From 0% to 100%

Protocol compatibility

iBeacon: Yes*

*EYE APP on iOS doesn’t show devices with iBeacon protocol

Eddystone: Yes

Sensors (custom): Yes

Certification & approvals

Certificates: E-Mark (EU), FCC (USA), CE/RED (EU), RoHS (EU), REACH (EU), Anatel, IP rating, SIRIM QAS, SDPPI POSTEL, ATEX ZONE 1
