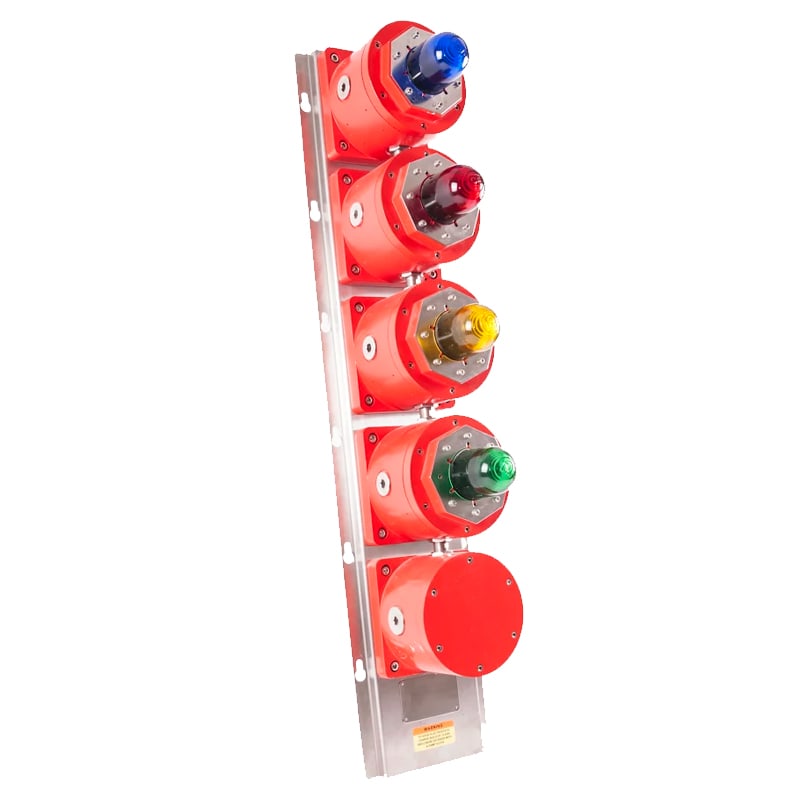

Status light SL150

Status light SL150 is certified for use in Atex/explosive atmosphere, zone 1 & 2 for gas and zone 21 & 22 for dust. It is dedicated for Oil & Gas,chemical, petrochemical, pharmacy industries, marine and Offshore applications. Status light SL150 is designed for corrosive environments and hazardous area.
The set is provided with 5 beacons maximum. The beacon can be delivered with two different light sources;
LED with steady, rotary, fixed or blinking led of different powers. Flashing with XENON tube of different powers.
Four flashing frequencies are available. Optional it is possible to control the beacon via a telephone line. On demand one of the beacons can be replaced by a push button or a junction box. The set is assembled on a stainless steel 316L frame. Housing is molded in Glass-Reinforced Polyester (GRP), dyed in the mass and protected by an UV resistant paint. The lens is made with borosilicate glass 3.3.
A complete range of accessories is available to customize a products.

SPECIFICATIONS
Operating Temperature: T6 = – 40°C + 55°C , T5 = – 40°C + 60°C, T4 = – 40°C  + 70°C
Material: enclosure in GRP, mounting plate in Stainless Steel.
IP rating: IP66/67
Enclosure Colour: Red ,Blue, Black, others colour on customer request
Lens: Tempered borosilicate glass 3.3 colour Red, Yellow (Amber), Blue, Green, Clear.
Optional: lens guard in stainless steel
Power Supply: 12-48V DC or 100-240V AC
Power Consumption: Xenon:2 Joule: 4W (Max); 5J: 10W (Max);10J: 15W (Max);15J: 20W(Max); 21J: 25W(Max); LED:5 W
Standard: EN/IEC 60079-0, EN/IEC 60079-1, EN/IEC 60079-31
Marking: Ex d IIC T4~T6 Gb,  Ex tb IIIC T135°C~T85°C, Ex II GD
Certification: Nemko 13 ATEX 1561X, IECEx NEM 13.0030X
Cable Entry: 4x M20 – M25**, 1/2″NPT**, 3/4″NPT** or other (specify)
Other: Telephone Initiated Function Available
