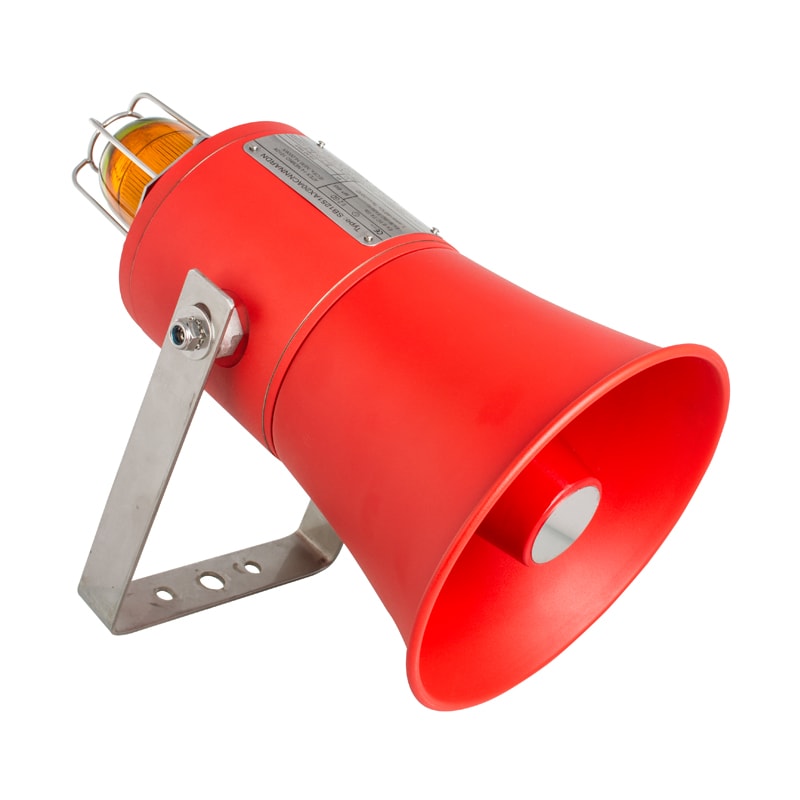

Speaker SB125

Speaker SB125 is certified for use in Atex/explosive atmosphere, zone 1 & 2 for gas and zone 21 & 22 for dust. It is dedicated for Oil & Gas,chemical, petrochemical, pharmacy industries, marine and Offshore applications. Speaker SB125 is designed for corrosive environments and hazardous area. This sounder, according to user control system, can be set with one tone among 59 prerecorded tones.
The beacon can be delivered with two different light sources;
LED with steady, rotary, fixed or blinking led of different powers. Flashing with XENON tube of different powers.
Four flashing frequencies are available. Optional it is possible to control the beacon and the sounder or separately via a telephone line. Housing is made of stainless steel 316L covered with UV resistant paint.
A complete range of accessories is available to customize a products.

SPECIFICATIONS
Operating Temperature: -40°C to + 70°C Humidity: Up to 95% RH
Material: enclosure and Bracket in Stainless Steel 316L
IP rating: IP66/67
Enclosure Colour: Red ,Blue, Black, others colour on customer request
Lens: Tempered borosilicate glass 3.3 colour Red, Yellow (Amber), Blue, Green, Clear.
Optional: lens guard in stainless steel
Power Supply: 12-48V DC or 100-240V AC
Power Consumption: Xenon:2 Joule: 4W (Max); 5J: 10W (Max);10J: 15W (Max);15J: 20W(Max); 21J: 25W(Max); LED: 5 W
Certificate: NEMKO 13ATEX1566X, IECEX NEM 13.0036X
Marking: II 2 GD Ex d IIC T4 … T6 Gb, Ex tb IIIC T135°C … T85°C
Cable Entry: 4* M20, M25, 1/2” NPT, 3/4”NPT or Others on request
Electromagnetic: CE0470 Marked
Other: Telephone Initiated Function Available. Twin Xenon tube type optional. Sound recording or customization. Build-in volume control
