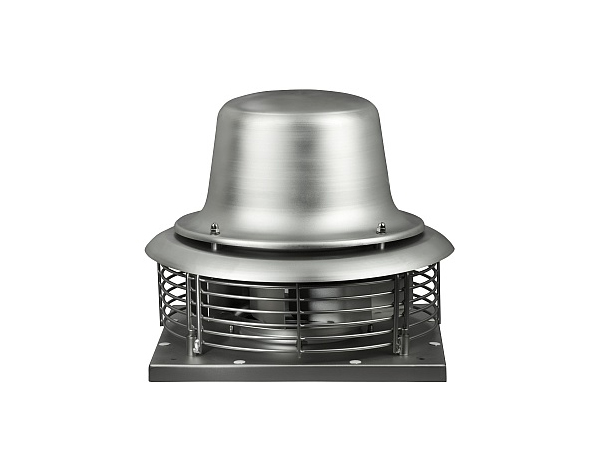

Roof top Exproof Fan ATEX

GENERAL FEATURES – ROOFTOP TYPE EX-PROOF FAN – ATEX ROOF FAN – EXPROOF ROOF FAN

* EXPROOF ROOF FAN with radial backward curved blades
at maximum efficiency * Suitable for working in outdoor conditions.
* The body is made of hard steel and coated with antistatic paint as standard.
* Ex-proof ATEX FAN
as a complete device * The motor is out of the airflow and can operate continuously at 120°C.
* Suitable for operation in the temperature range of -20°C / +120°C.

USES

* Explosive atmosphere space ventilation
* Industrial warehouse ventilation ex-proof fan
* Industrial kitchen hood exhaust fan systems
* Petrochemical plants

ENGINE

* IP 55 protected, IE2/3 high efficiency full closed type, EEx-e / EEx-d
* For easy electrical connection, there is an external electrical junction box with IP67 protection outside the exproof fan housing.
* It is 400V-50Hz as standard and is suitable for use with frequency converter.

PROPELLER

* Backward curved radial ex-proof fan high efficiency blades are made of corrosion resistant galvanized material.
* Performance data selected according to +120°C conditions
* P kg/m3 (based on density 0.89kg/m3)
