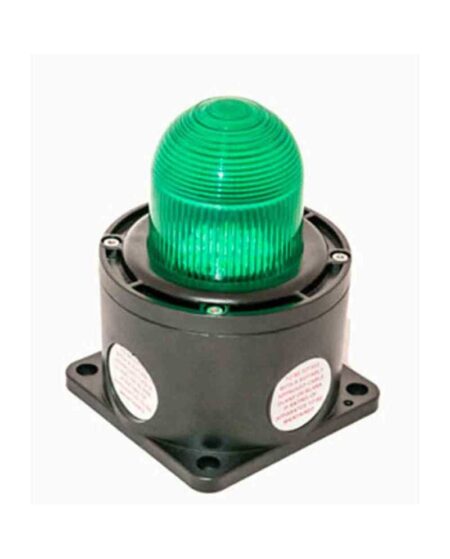

Flashing beacon BC100 Industrial/Marine Safe Area Beacon & Light was designed according to EN 54 standard. Enclosure material is flame retardant
polycarbonate. Flashing beacon is suitable for outdoor safe area application. It especially applies to Oil & Gas, Chemical, Petrochemical, Refinery, Marine and Offshore Industries etc. for outdoor safe areas. It can be used for Fire Alarm, Gas Detection, Fire Fighting and Industrial Automation Failures and Emergency Alarm System.
It has telephone initiated function and can be used as the second ring output indicator of industrial telephones as well which apply to special locations where the environment is noisy on the engineering site. Different flash or rotary frequency can be adjusted from unique design. Three working statuses-flash type, rotary type and steady type are available (LED).
Various colours are selectable for lens cover from Red, Amber, Blue, Green to Clear. Other colours are also available upon customer’s request.
• Industrial/Marine Safe Area • IP 66 • Flame Retardant Polycarbonate
Enclosure and Lens Cover • Xenon or LED Option • Xenon: 2.5, 5 or 10J •
LED: 2.5, 5 or 10W
• 3 Stages of Alarm Light Output • Flashing Frequency
Adjustable
• Telephone Initiated Function• 5 Lens Colours: Red, Amber,
Blue, Green and Clear
• 12-48 V DC or 100-240V AC Version • Wall
Mounting
• Standard: EN54
SPECIFICATIONS:
Operating Temperature: –40°C to + 70°C
Humidity: Up to 95% RH
Material: flame retardant polycarbonate
IP rating: IP 66/67/69k
Type: Xenon or LED
Enclosure Colour: Red ,Blue, Black, others colour on customer request
Lens : flame retardant polycarbonate, colour Red, Yellow (Amber), Blue, Green, Clear.
Power Supply: 12-48V DC or 100-240V AC
Power Consumption: Xenon: 2.5, 5 or 10 Joules LED: 2.5, 5 or 10W
Working status: Xenon: Flashing LED: Flashing, rotating or steady
Standard: EN 61000-6-2, EN 61000-6-4 outdoor safe non ATEX classified area
Cable entry: 2x dia 20mm standard for cable gland ISO 20 (no provided). 4 in option. Diameter under to 20mm in option
Other: Telephone Initiated Function Available, 3 Stages of Alarm Light Output, Flashing Frequency adjustable, Wall mounting
