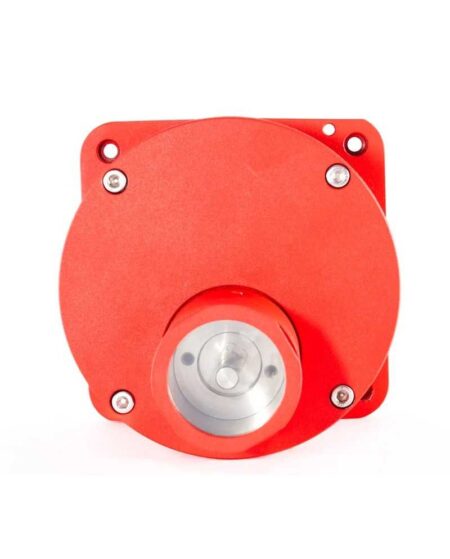

Call point CP 125

This manual call point is certified for use in Atex/explosive atmosphere, zone 1 & 2 for gas and zone 21 & 22 for dust. It is dedicated for Oil & Gas,chemical, petrochemical, pharmacy industries, marine and Offshore applications. Call point designed for corrosive environments and hazardous area. The apparatus is compatible with PLC, ESD, DCS systems via output 4-20mA. The test function is built in, visualisation functions, line detection, and glass protection,
hammer, are optional. Housing is made of stainless steel 316L covered with UV resistant paint.
A complete range of accessories is available to customize a products.

SPECIFICATIONS
Operating Temperature: -40°C to + 70°C Humidity: Up to 95% RH
Material: stainless steel
Push Button Assembly Material: Stainless Steel
IP rating: IP66
Enclosure Colour: Red, Blue, Yellow, Black/Yellow Stripes , others colour on request
Power Supply: 24V DC or 100-240V AC
Switch Rating: 250V AC- 11A (Resistive), 6A (Inductive), 30V DC- 6A (Resistive), 6A (Inductive)
Output: On-off Output ( NC/NO) or 4-20mA DC
Certification: NEMKO 13ATEX1563X, IECEX NEM 13.0033X
Marking: II 2 GD, Ex d IIC T6 Gb, Ex tb IIIC T85°C (amb T°= -40°C … +70°C)
Cable Entry: 4* M20, M25, 1/2” NPT, 3/4”NPT or Others
Optional:
– Lift Flap
– LED Indicator
– Resistor and/or diode can be Fixed
