ATEX Light Fitting | Lighting for Zone 21, 22 and 2

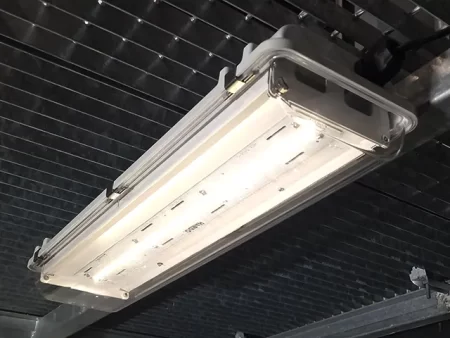

Atex light fitting
Product features
Excellent quality-to-price ratio
Up to 4 cable glands M20 or M25 for ease of installation
Pass-through wiring eliminating junction boxes
Can be used as emergency lighting (optional)
Diffuser and internal mounting plate on hinges (no loose parts)
3 diffusers providing varied light beams
Very high efficiency (from 141 to 181 lm/W)
Lenses directing the light beam (optional)
ATEX light fitting Technical Data
Certification: ATEX, IECEx, CNBOP
ATEX marking:
II 2 D Ex tb IIIC T70 °C Db ( Cert. no.: KSCP 23ATEX0021X )
II 3 G Ex ec IIC T4 Gc ( Cert. no.: KSCP 23ATEX0022X )
IECEx marking:
Ex tb IIIC T70 °C Db ( Cert. no.: IECEx KSCP 23.0045X )
Ex ec IIC T4 Gc ( Cert. no.: IECEx KSCP 23.0045X )
Material of Enclosure: GRP
Material of Diffuser: UV stabilized PC (Polycarbonate)
Diffuser in three versions: clear/ opal / frosted
Impact resistance: HIGH (acc. to EN IEC 60079-0)
IP rating: IP66/ IP67
Color Temperature: 4000 K (optionally: 3000K or 5000 K)
CRI: >80 (optionally: >70 or >90)
Ambient temperature: -40°C – +50°C (ATEX)
